Johnson Pump 1600 GPH Bilge Pump 1-1/8" Hose 12V

JOHNSON PUMP 1600 GPH BILGE PUMP 1-1/8" HOSE 12V

Part No.	MPN	Qty	Price	Actions
DS1054-38955	16004-00		$181.49

Details

Return Policy

Shipping Policy

Technical Information Guide

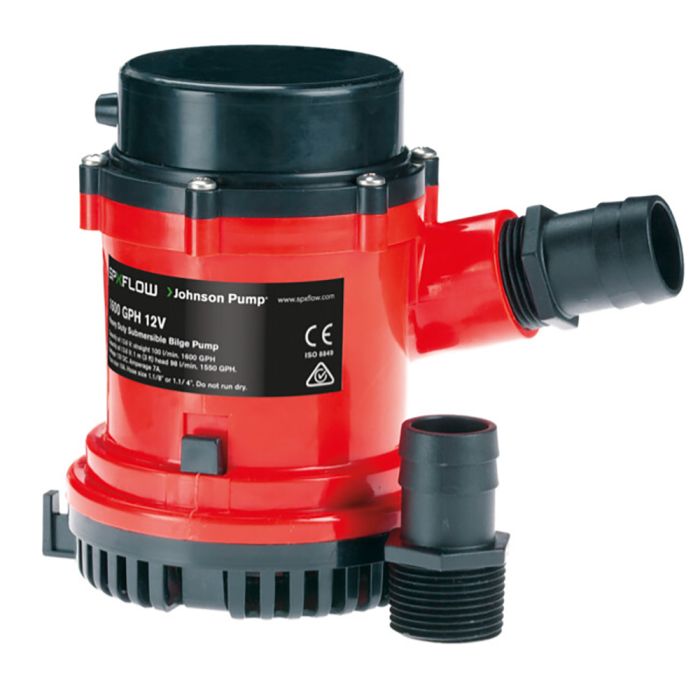

Heavy Duty Bilge Pump 1600 series 12v:
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:

Heavy duty, 12-pole double ball bearing motor
Liquid cooled for extended motor life
Quality engineered mechanical/lip seal
ISO 8849 Marine and CE standards
Easily interchangeable with most similar bilge pumps
Pump body: Thermoplastic
Shaft seal: Mechanical seal
Shaft: Stainless steel (SS2343)
Voltage: 12 V
Capacity 1.0 m head (13.6 V/27 V): 98 l/min - 1550 GPH
Capacity straight (13.6 V/27 V): 100 l/min - 1600 GPH
Amperage: 7 A
Fuse Size: 10 A
Connection: 1-1/8" and 1-1/4"
Shaft: SS2343
Wire size: 1.3 mm2 - 16 GA
Max height 149 mm - 5.86"
Weight 1.3 kg - 2.75 lbs
