Iris Compact Mini Joystick f/ATOM Range Cameras
IRIS COMPACT MINI JOYSTICK F/ ATOM RANGE CAMERAS
Loading...
Order Table
Shipping Quote form
Shipping Address :
Details
Reviews
Return Policy
Shipping Policy
Technical Information Guide

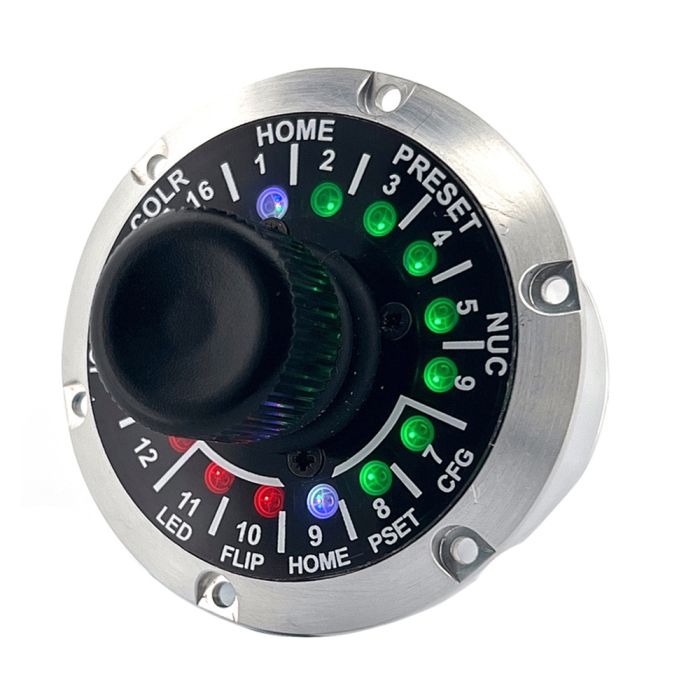

Compact Mini Joystick for ATOM Range Cameras
The IRIS599 Compact Controller not only features a waterproof 4-axis joystick (for pan, tilt, zoom and select controls) but also an in-depth yet intuitive menu system to achieve deeper control of extended features such as Preset operation (set and call), Home Position operation (set and call), absolute reference control, LED Brightness and a host of thermal camera functions such as color palette selected, nonuniformity correction filter operation and Image Contrast Enhancement operation.
As well as control over camera features, the IRIS599 can also be used to switch between camera modules on our dual payload models and be used to select up to 16 cameras, giving you full control of your vessel onboard camera system from a single, compact control interface.
Manufactured from 316L marine grade stainless steel and measuring only 2.75” in diameter, the IRIS599 controller is easy to install and fits neatly at any helm. A dimmable ring of colored LEDs provides feedback and a visual indication of camera position and menu and feature selection.
With its super compact form factor, the IRIS599 should fit neatly into most helms, but should helm-space be a premium, we’ve also developed a beautiful POD599 mounting option to allow the unit to be fixed to a vertical or overhead space.
Whether used as an independent controller or in conjunction with our TE01 or CMAC, the IRIS599 is a powerful control interface for your onboard or in-vehicle camera system.
The IRI599 outputs RS485 Serial Data (Pelco D + Iris Variant Protocol) with a CANBus version due for release in 2025.
Features:
- Super-Compact Form Factor (Only 2.75” in Diameter)
- Circular design for easy cutout and installation
- A316L Marine Grade Stainless Steel Case
- 4 Axis (Pan / Tilt / Zoom & Select) Joystick
- Scaled Speed Controls
- Intuitive Menu Control with 16 Colored Feedback LEDs
- Dimmable LED’s
- Supports Call and Set Preset Positions (16)
- Supports Extended Thermal Camera Feature Operation
- Switches 16 Camera Inputs
- Low Power / +9-30VDC Operation
- Supports RS485 Serial Data (CANBus Version due 2025)
- IP66 Environmental Rating
- Pelco D + Iris Variant Protocol
Technical Specifications:
- Bezel Diameter - 70mm / 2.75"
- Cut-out Diameter - 52mm / 2.05"
- Connector type - M12 5-Pin Circular DIN Connector (CAN style connector) - Field installable Connector Supplied
- Operating Temperature Range - -20 - 65°C (-4 - 149°F)
- Storage Temperature - -30 - 70°C (-22 - 158°F)
- Chemical Resistance - Designed to survive repeated exposure to salt water and most chemicals found in light industrial and off-highway applications
- Max Operating Power - 1.5W Max Brightness
