Lectrotab 12V Heavy Duty Tab Actuator - 6' Cable f/Everglades Boats
LECTROTAB HEAVY DUTY 12V ACTUATOR 23' CABLE LENGTH
Loading...
Order Table
Shipping Quote form
Shipping Address :
Details
Reviews
Return Policy
Shipping Policy
Technical Information Guide

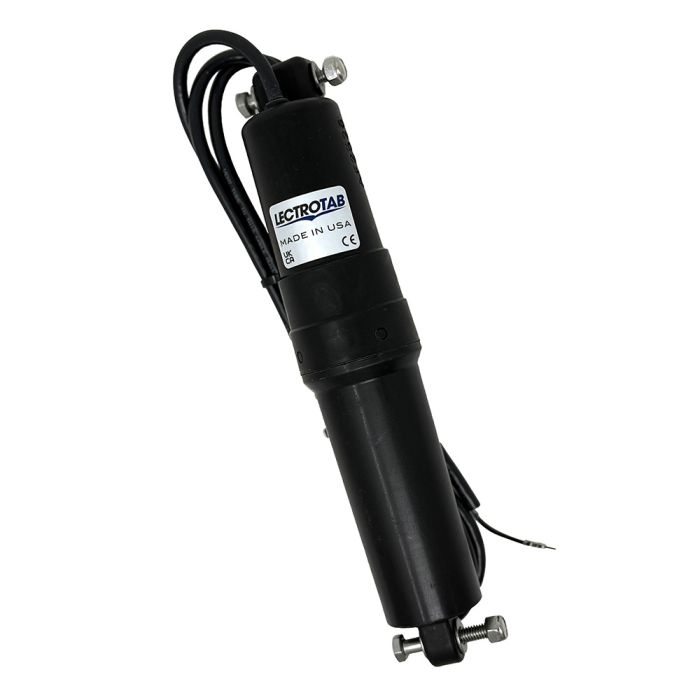

12V Heavy Duty Tab Actuator - 6' Cable for Everglades Boats
Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design.
The unit is corrosion-free, ensures precise tab positioning, provides maximum lift force, and is completely self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket.
Compatible With:
- Everglades Boats
Features:
- Reinforced actuator upper mounting boss
- The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
- Utilizes an internal pressure equalization system
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation
- All actuators are fully load-tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater
Technical Specifications:
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 6' (1.8 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Connectors - Deutsch style
*Sold as an Individual
