Raymarine RVX1000 3D Chirp Sonar Module

RAYMARINE RVX1000 3D CHIRP SONAR MODULE

Part No.	MPN	Price	Actions
DS1357-71949	E70511	$1,261.95	Out of stock
Out of stock notification Are you sure to add a notify email ?

Details

Return Policy

Shipping Policy

Technical Information Guide

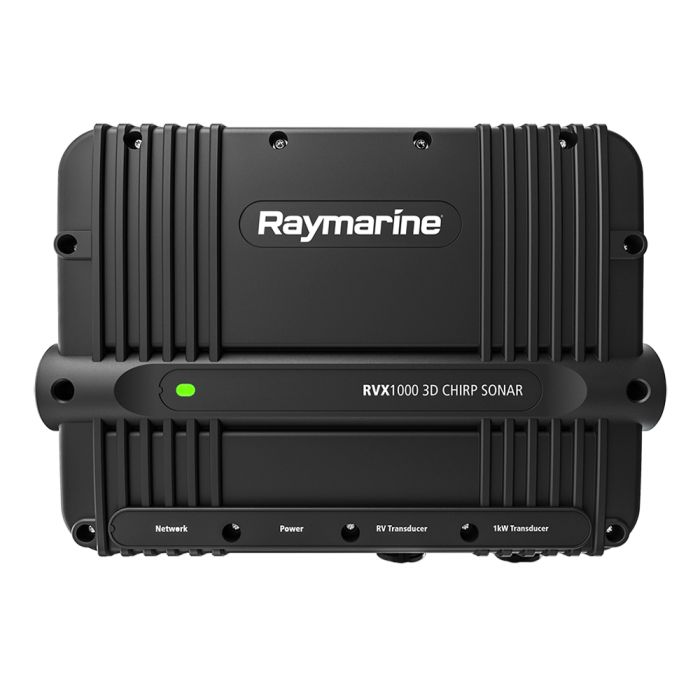

RVX1000 3D Sonar Module

The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Features:

5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
RealVision 3D with GPS Track
Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
Raymarine’s TrueZoom™ magnification technology
RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay

Specifications:

Connections: 1x RVX Port = 25 pin RealVision connector | 1x 1kw Port = 11 pin 1kW connector | 1x Power connection | 1x Raynet connection
Sonar: SonarRealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
Sonar Depth: High Frequency CHIRP = 900 feet | DownVision = 600 feet | SideVision = 300 feet Port and Starboard | 1kw = 5,000 feet
Nominal Supply Voltage: 12 V and 24 V DC
Operating Voltage: Range10.8 V to 31.2 V DC
Power Consumption: 10.4 W (Maximum)
Current: 2.4 A Peak; 1.2 A RMS
Fuse/Breakers: 5amp
Waterproof Rating: IPX6/IPX7
Operating Temperature: -25 C (-13 F) to +55 C (+131 F)
Storage Temperature: -30 C (-22 F) to +70 C (+158 F)

The RVX1000 is compatible with all LightHouse 3 enabled Multifunction Displays running software version 3.4 or higher.

In the Box:

RVX1000 Sonar Module (1)
Power Cable, 1.5M (1)
Fixing Screws, #8 (4)
Documentation Pack (1)
RayNet Network Cable, 2M (1)
