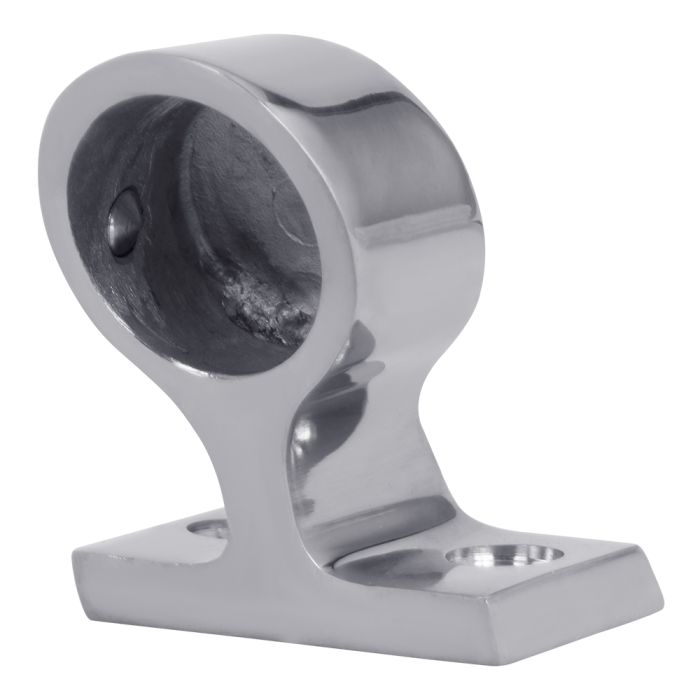

Stainless Aft Handrail Stanchions

Be the first to review this product

Availability: In stock

Product Name Price Qty

6860S-S - 60° Angle, Aft Position, Right Hand Set Screws, 7/8" Tube

$16.49

6860S - 60° Angle, Aft Position, No set screws, 7/8" Tube

$16.49

6860S-P - 60° Angle, Aft Position, Left Hand Set Screws, 7/8" Tube

$16.49

6865S - 60° Angle, Aft Position, No set screws, 1" Tube

$16.49
OR

Quick Overview


316 Stainless Steel Cast, Uses 1/4”-28 set screw for rail installation.
Starboard Stanchions (-S) have set screws on the right side of bushing
Port-side Stanchions (-P) have set screws on the left side of bushing

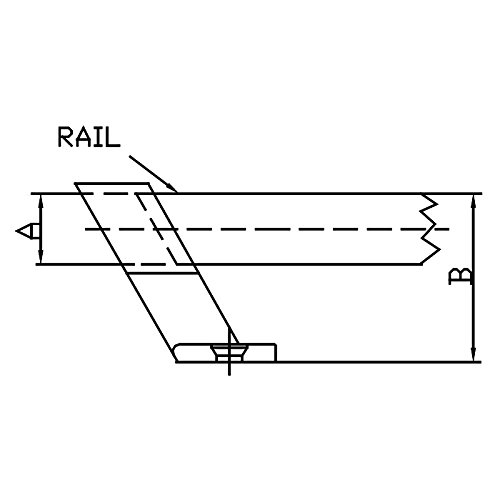

6860S-S - 60° Angle, Aft Position, Right Hand Set Screws.
A) 7/8” B) 1-13/16” Fastener #12 FH


6860S - 60° Angle, Aft Position, No set screws
A) 7/8” B) 1-13/16” Fastener: #12 FH


6860S-P - 60° Angle, Aft Position, Left Hand Set Screws
A) 7/8” B) 1-13/16” Fastener: #12 FH


6865S - 60° Angle, Aft Position, No set screws
A) 1” B) 2-3/16” Fastener: 1/4" FH



Details

Handrail Stanchion Fittings constructed from 316 Marine grade stainless. Tube Diameters 7/8" and 1" available. 60 degree angle with ALT position.

Additional Information

U/M EA
Brand
Material 316 Stainless Steel Cast
