Airmar B75HW High Wide Chirp Transducer - 20 Degree Deadrise, 600W Thru Hull
AIRMAR B75HW CHIRP 20 DEGREE 600W THRU HULL TRANSDUCER
Loading...
Order Table
Shipping Quote form
Shipping Address :
Details
Reviews
Return Policy
Shipping Policy
Technical Information Guide

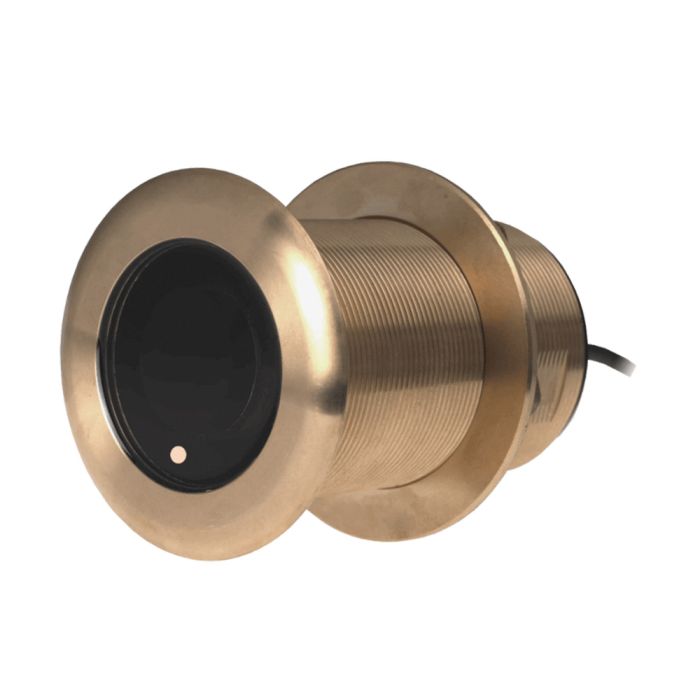

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru Hull

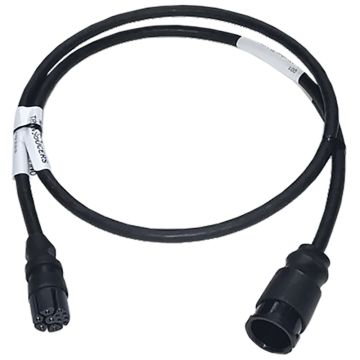

Requires Mix and Match Cable for the appropriate Fishfinder it will be connected to.
Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').
B75HW transmits across the following bandwidth: High frequency 150 to 250 kHz
The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadrise
Features:
- Depth and fast-response water-temperature sensor
- 600 W with a maximum depth performance of 106 m (350')
- High frequency: 150 to 250 kHz
- 30° beamwidth
- High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
- Low-profile, thru-hull housing provides good resolution at speed when installed properly
- Bronze housing for use on stepped, planing, or displacement hull
- Exclusive Xducer ID® technology
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Hole Size: 70 mm (2-13/16")
- CHIRP-Ready Single-Band
