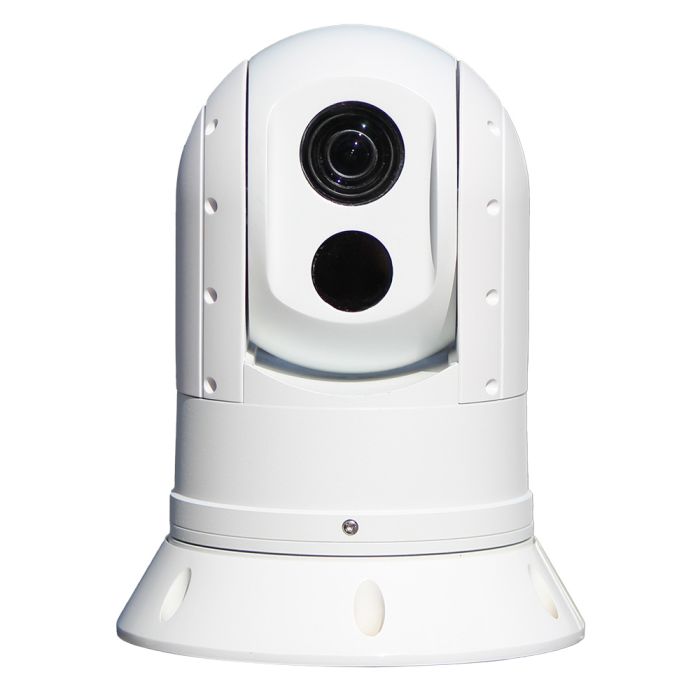

Iris A395 Dual Payload 640x512 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera
IRIS A395 DUAL PAYLOAD 640X512 THERMAL + 1080P (10X ZOOM)
Loading...
Order Table
Shipping Quote form
Shipping Address :
Details
Reviews
Return Policy
Shipping Policy
Technical Information Guide
A395 Dual Payload 640x512 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera
The IRIS-A395 Low-Cost Dual Payload Night Vision PTZ From Iris Innovations.
With an industry-leading 400×300 thermal resolution, the cameras also feature a 2MP high-definition visible spectrum camera core with excellent low light performance, super sharp footage, and 10x optical zoom capabilities.
Available with side entry or base entry cable options, the cameras are built into a robust yet compact waterproof case, designed to protect the unit from the harshest environmental conditions.
Each sensor has its IP address meaning the cameras can be configured, controlled, and switched independently, and are compatible with many leading marine chart plotters via our range of CMAC camera management interfaces. An RS485 Serial Data connection is also provided to maximize control options so Atom cameras can be controlled using suitable joystick control devices and NVRs. With its rugged, compact footprint and extremely competitive pricing, our ATOM range of IP PTZ cameras is the perfect solution for vessels of all types and sizes and our industry-leading thermal imaging technology opens up a world of boating at night in safety. Standing only 8″ high, ATOM cameras blend into the vessel's aesthetic without standing out, and because they are so small they are the perfect camera solution for RIBs, center consoles, and sports fishing boats.
To maximize compatibility, the ATOM-A395 is both ONVIF compliant and as the camera is also NDAA compliant, can be used for government, military, and other security-sensitive applications.
Features:
- Dual Spectrum Cameras - Thermal & Visible Spectrum
- Visible Spectrum Camera 2MP HD Resolution 10x Optical Zoom
- 640x512 (A395) thermal core resolution - 4x Digital Zoom
- Miniature - Lightweight Compact Form Factor
- Dimensions 206mm x 160mmø / 2Kg Weight
- Available with single IP address or dual IP addresses
- Side mount or Rear mount Waterproof Cable Connector
- Push Lock Quick Connector - IP66
- 12µm Pixel Pitch
- Features IP and RS485 Serial Data Control
- 750mA @ +12VDC Power / 8.4W
- IP66 Environmental Rating
Technical Specifications:
- Thermal Camera Resolution - 640x512
- Thermal Camera Lens - 19mm
- Pixel Pitch - 12µm
- Refresh Rate - 25/30Hz
- Color Pallets - White Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint
- Image Enhancement - ICE® Image Contrast Enhancement - 7 Levels
- Zoom - x4 Smooth Digital Zoom - Continuous
- Visible Spectrum Camera - 1/2.8” High-Performance Low Illumination SONY CMOS Sensor IMX327
- Resolution - 1920 x 1080 25/30 frames/sec
- Focal Length / Iris / Zoom - F = 4.7mm 94mm / F1.6 F3.5 / 20x Optical Zoom
- Compression - H.264 / H.265
- Bit Rate - 32Kbps 16Mbps
- Frame Rate - 1-25fps(50Hz) / 1-30fps(60Hz)
- Streams - Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF)
- Cellular/WiFi/GPS - Optional
- Protocols - Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D
- Power Requirements - +12vDC / 750mA / 8.4W
