OceanLED X-Series X4 - Midnight Blue LEDs
calcPageSize())"
/>
OceanLED X-Series X4 - Midnight Blue LEDs
- 1,150 fixture lumens (1,450 LED lumens) from a low-profile design, equivalent to 150W metal halide
- 60° circular focused beam for wide coverage and strong water penetration up to 45' in clear water
- Fish-Strobe mode emits a randomized pattern proven to attract bait fish
- Tritonium-coated lens wipes clean, virtually eliminating maintenance
- Simple DIY install: 12.5mm cable hole, 4 screws, 9-32V DC, no bonding required
- IP68 rated with CREE LEDs and 40,000-hour life expectancy
- Midnight Blue color option, 2-year warranty
Shipping Quote form
Shipping Address :

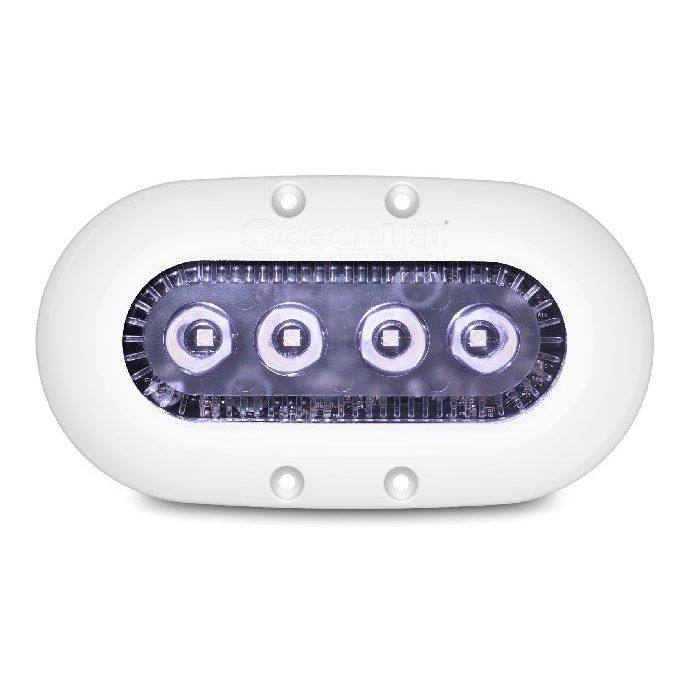

OceanLED X-Series X4 - Midnight Blue
The OceanLED X-Series X4 combines brightness with affordability. Whether cruising or fishing, the X4 delivers stunning performance, letting you enjoy more time on the water with family and friends.
The X4 outputs an impressive 1,150 fixture lumens from its low-profile design, using focused optics to produce a 60° circular beam from each LED. This provides excellent water penetration while illuminating a large area.
Looking to catch more fish? Switch on Fish-Strobe mode and the light emits a random strobe pattern proven to attract extra bait fish.
The simple design is easy to install, even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix four screws and the hard work is done. Connect to 12V and you are ready to light up the water.
Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth, thanks to the special Tritonium coating.
Features
- 1,450 Lumens / 1,150 Fixture Lumens: Outstanding performance from a small, bright fixture, equivalent to a 150W metal halide.
- 60° Beam Angle: A wide-angled, focused beam lights up a large area of the water.
- Compact and Simple Design: Built from a chemically resistant optical polymer with a built-in driver. Installation needs only a 12.5mm hole and four screws. No bonding required.
- Easy to Clean: The Tritonium coating means a simple wipe of the lens removes underwater growth.
- Fish-Strobe Mode: Exceptionally bright, randomized strobing proven to attract more fish.
Mounting Recommendations
- Boat size: up to 30' (9M)
- Transom / hull spacing: 2-3' (0.5-1.0M)
- Transom quantity: 2-4
- Hull quantity: 4-8
- Installation depth (to top of fixture): 300mm below water line
- In-water fitting: No
Technical Specifications
| Light output equivalent to | 150W metal halide |
|---|---|
| Fixture Lumens | 1,150 |
| Lumens | 1,450 |
| Beam angle | 60° circular |
| LED life expectancy | 40,000 hours |
| Operating voltage (DC) | 9 - 32 V DC |
| Current / amp draw | 0.8A @ 12V DC - 0.4A @ 24V DC |
| Light penetration (avg. water) | 20' (6M) |
| Light penetration (perfect water) | 45' (13+M) |
| Driver type | Internal |
| Color options | Ultra White / Midnight Blue |
| Correlated color temp | 6500K / 450nm |
| IP rating | IP68 |
| Fish strobe | Yes |
| Anti-fouling | Tritonium coated lens |
| LED manufacturer | CREE |
Physical
| Size | 5.4" (137mm) x 2.91" (74mm) |
|---|---|
| Depth | 0.86" (22mm) |
| Total weight (incl. driver) | 0.70kg |
| Extension cable length | 3M (standard, hard-wired) |
| Cable entry cut-out | 1/2" (12.5mm) |
| Material | AB2 |
| Lens material | Pilkington Optiwhite |
| Body construction | Chemically resistant optical polymer |
| Bezel material | Plastic (Stainless Steel optional) |
| Bezel color | White |
| Optics | Collimator |
| Number of LEDs | 4 |
| Certification | EMC Approved, CE Approved |
| Warranty | 2 years |
