Stainless Steel Fold Out with Grab Rail Over Platform Telescoping Ladder
SKU
B00351BGR
304 Stainless steel tubing
Designed to stow away in a wide range of possibilities
Nylon bushing in between ladder segments for anti-rattling
Built to ABYC H-41 Requirements
Our B00351BBD model + Grab Rail
Telescoping Over Platform Ladder, 4 Step
Can Support up to 400lbs
Ladder is 3-1/2'' in Stowed Position on the boat

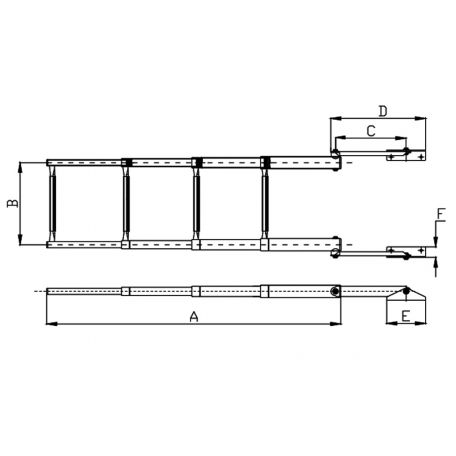

STEP NO. 4
A DEPLOYED) 31-1/2''
A STOWED) 16-1/2''
B) 10''
C) 9.5''
D) 11.75''
E) 4.5''
F) 1-5/16''
SKU: B00351BGR
Order Table
B00351BGR | 4 | 31-1/2'' | 16-1/2'' | 10'' | 9.5'' | 11.75'' | 4.5'' | 1-5/16'' | $184.99 | ||
Part No. | Step No. | A1 Deployed | A2 Stowed | B | C | D | E | F | Qty | Price | Actions |
---|
