| B00351UFG-WH | 4 | 44-9/16" | 17" | 13-1/2" | 15" | 10-1/8" | 1/4" |
|
$319.99 | |

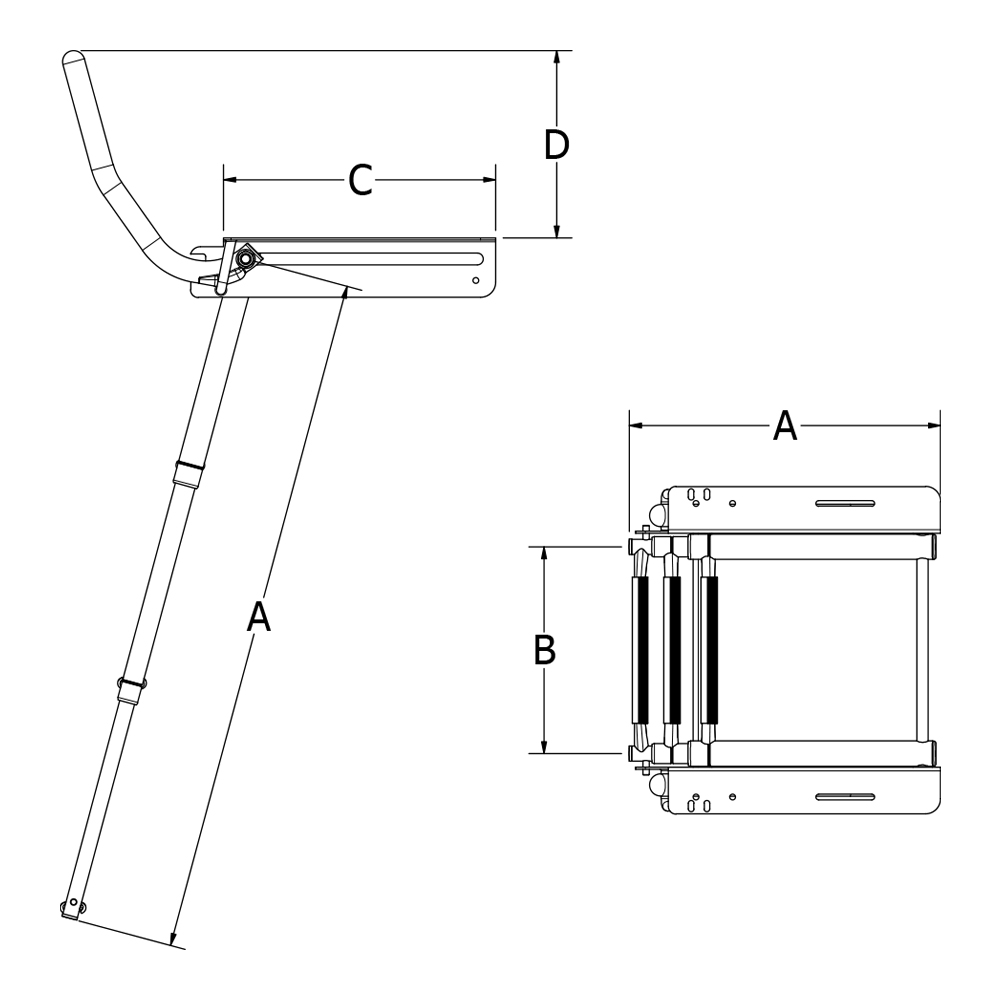

| Part No. | Step No. | A1 Deployed | A2 Stowed | B | C | D | Fastener Size (Not Included) | Qty | Price | Actions |
|---|

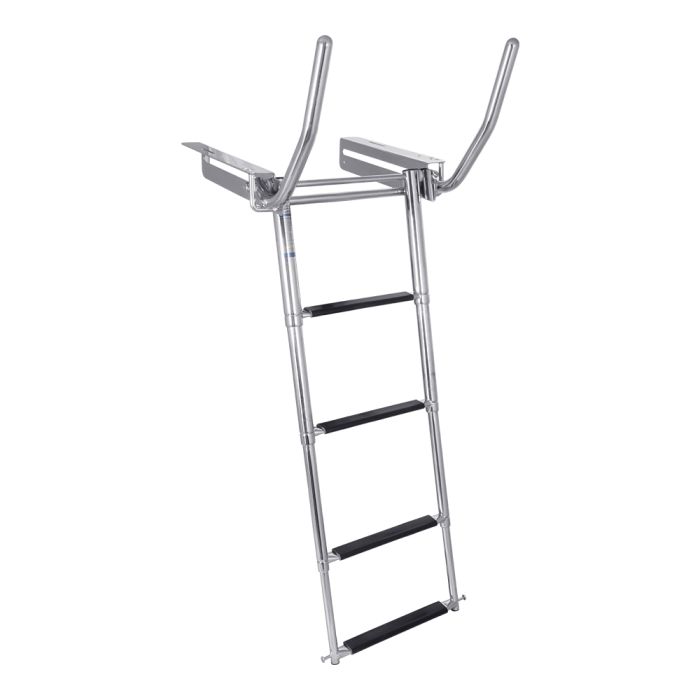

Stainless Steel Wide Under Platform Ladder with Grab Handles
- Wide 4-step under-platform boarding ladder with integrated fold-out grab rails for secure water entry and exit
- 316 marine-grade stainless steel with high-polish finish — built for continuous saltwater exposure
- Spring-assisted grab rails extend automatically as the ladder deploys
- 400 lb weight capacity, ABYC H-41 compliant
- Mounts under wide swim platforms; deployed 44-3/4", stows to 16-1/4"
- 20" overall width with 15" center-to-center step span; telescoping design
- Wide non-slip steps; installs with 1/4" fasteners (mounting hardware not included)
x
Loading...
Order Table
Shipping Quote form
Shipping Address :
customer submitted Photos
Details
Reviews
Return Policy
Shipping Policy
Technical Information Guide
The White Water Marine Hardware Wide Under Platform Boat Ladder with Grab Rails is a 4-step telescoping boarding ladder engineered for wide swim platforms on pontoons, center consoles, and express cruisers. Built entirely from 316 marine-grade stainless steel with a high-polish finish, this under-platform ladder is made for continuous saltwater service and stands up to harsh marine conditions season after season.
Integrated fold-out grab rails are spring-assisted, extending automatically into position as the ladder deploys to give boarders a secure handhold the moment they reach the swim platform. The wide-step profile expands the tread geometry for stable footing during water entry and exit, and the telescoping frame extends to a deployed length of 44-3/4" while collapsing to a compact 16-1/4" stowed height. With a 20" overall width and a 15" center-to-center step span, it suits wide-platform boats that standard ladders can't span. The 400 lb weight capacity and ABYC H-41 compliance make it a confident reboarding solution for adult swimmers.

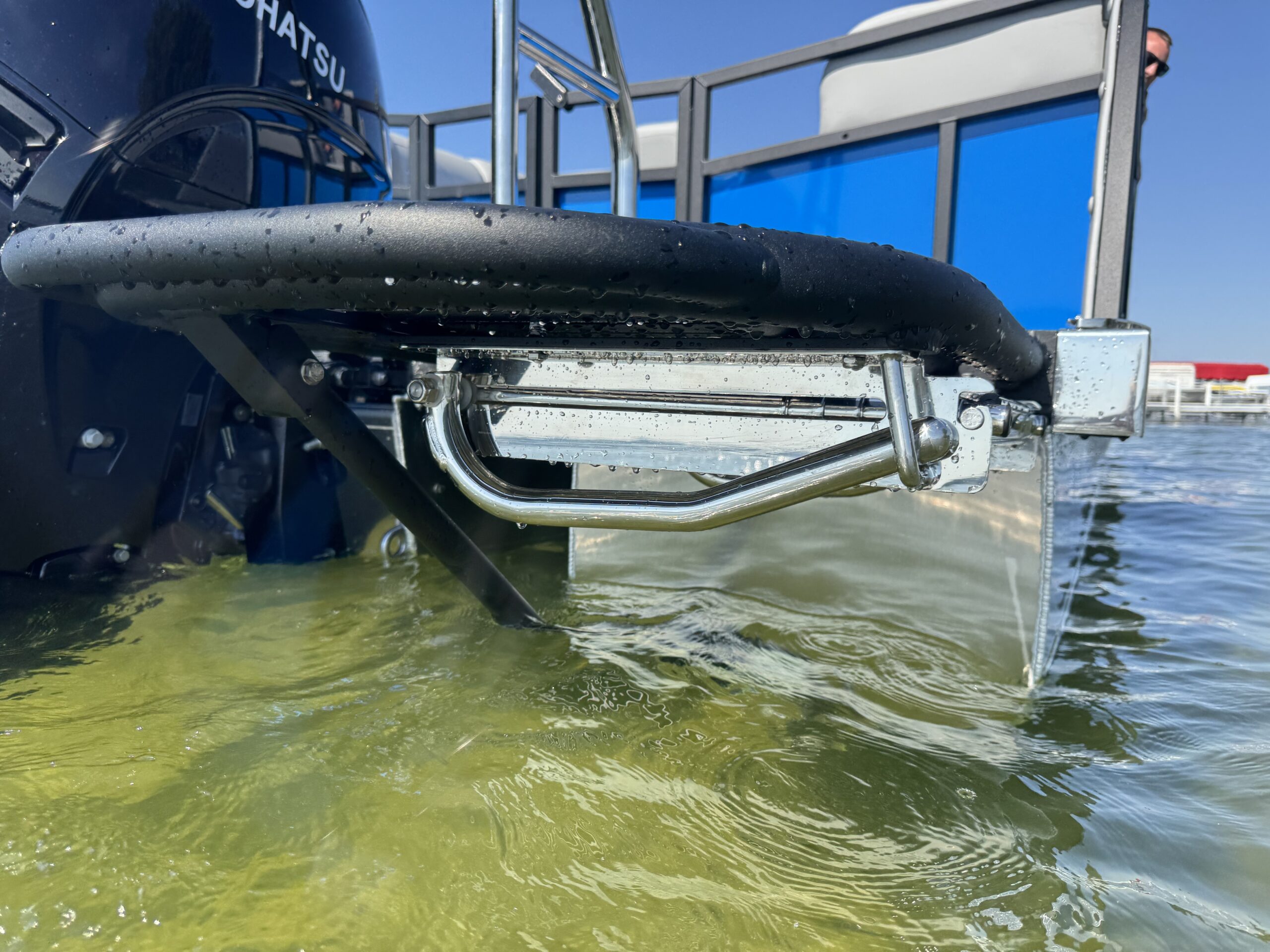

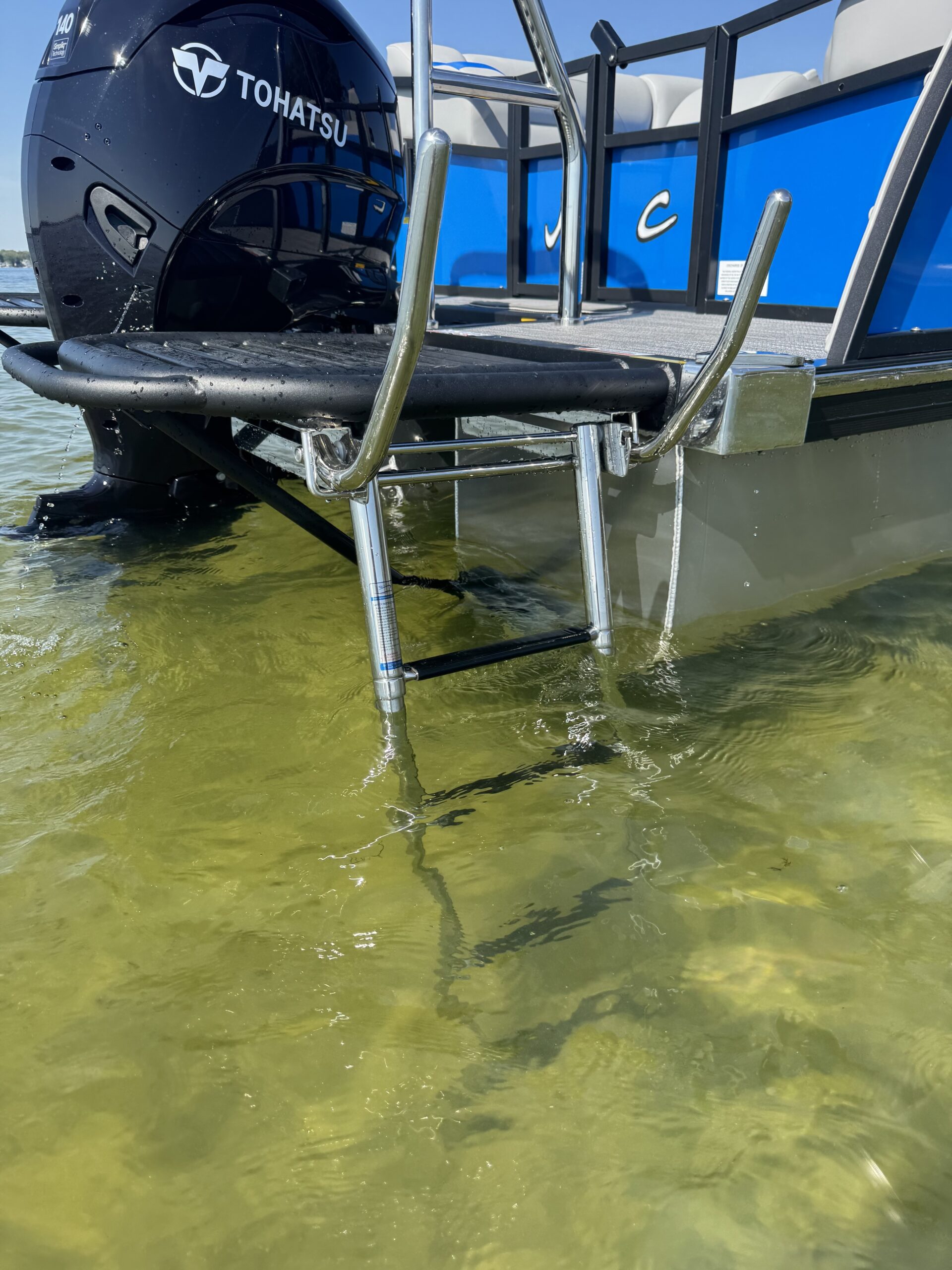

The wide-mount bracket positions fasteners near the high-stress base of the grab rails where bending load concentrates, and the ladder locks into its stowed position via a bracket notch and retaining pin — no loose hardware or straps required. Installs with 1/4" fasteners (mounting hardware not included). Built to ABYC standards. Confirmed fitment includes JC Pontoons.
