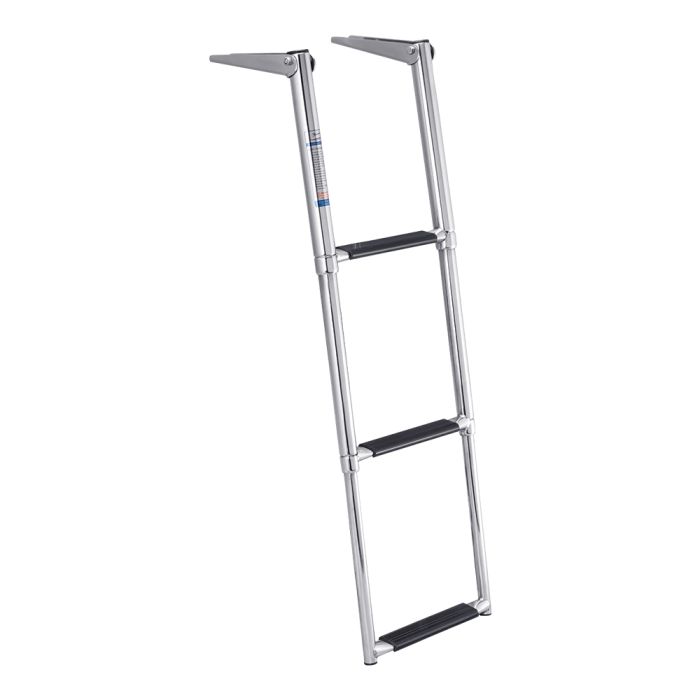

Over Platform Telescoping Drop Ladder
- Family of over-platform telescoping boat ladders, 2-step through 5-step
- 304 stainless steel standard; 316 stainless options for saltwater service
- 10-5/8" to 13-5/8" overall width; standard 10" center-to-center mounting
- 1/4" or 5/16" flat-head fasteners depending on step count (not included)
- Platform-gudgeon mount on top of swim platform; folds flat when stowed
- Telescoping steps with non-slip treads on every variant
- 400 lb weight capacity across all variants; ABYC H-41 compliant
x
The Over Platform Telescoping Drop Ladder family covers the most-installed swim platform boarding ladder configurations on recreational boats. The line ranges from a compact 2-step (23-1/2" deployed) up through a 5-step (55-7/8" deployed) for high-freeboard express cruisers, flybridges, and houseboats. All variants share the same platform-gudgeon mount with 10" center-to-center hole spacing, are foldable and telescoping for stowed clearance, carry a 400 lb weight rating, and meet ABYC H-41 boarding-ladder requirements for OEM and surveyor specifications.
Picking the right one comes down to freeboard, water service, and mounting geometry. Pick the 2-step B00311R for very low swim platforms typical of inboard ski and wakeboard boats. The 3-step B00301R is the family workhorse for bowriders, ski/wakeboard boats, center consoles, and walkarounds — long enough to put a rung below the waterline on typical I/O and outboard platforms. The 4-step B00351R is sized for express cruisers, walkarounds, and full-size center consoles in the 25–30' range, where the extra rung matters for solo re-boarding from the water. The 5-step B00355R reaches the water from elevated platforms on flybridges, large center consoles 30'+, express cruisers, and houseboats.
For saltwater service or boats that see regular salt exposure, the B00301R-316 (3-step) and B00351R-316 (4-step) are dimensionally identical to their 304 counterparts but built in 316 stainless for improved chloride and pitting resistance. If your swim platform has an unusually thick edge or fascia and a standard ladder doesn't have enough offset to clear when folding, the B00351R-8 (4-step with 8" gudgeon) moves the rotation pivot further from the deck. Confirm the 10" center-to-center mounting hole pattern matches your existing footprint before ordering as a direct replacement.
